常州市上能鍋爐有限公司專注設計制造電加熱導熱油爐.
Changzhou Shangneng Boiler Co., Ltd. specializes in designing and manufacturing electric heating and heat transfer oil furnaces,
電加熱導熱油爐功能特點：Functional characteristics of electric heating and thermal oil furnace:
1、具有低壓、高溫、安全、高效節能的特點。
1. It has the characteristics of low pressure, high temperature, safety, high efficiency and energy saving.
2、具有完備的運行控制和安全監測裝置，可以精密地控制工作溫度。
2. Equipped with complete operation control and safety monitoring devices, it can precisely control the working temperature.
3、結構合理、配套齊全、安裝周期短，運行和維修方便，便于鍋爐布置。
3. Reasonable structure, complete supporting facilities, short installation cycle, easy operation and maintenance, and convenient boiler layout.
4、由于電加熱有機熱載體爐采用先進的防爆結構，可應用于工廠Ⅱ區防爆，防爆等級可達C級。
4. Due to the advanced explosion-proof structure adopted by the electric heating organic heat carrier furnace, it can be applied to the explosion-proof of Zone II of the factory, and the explosion-proof level can reach Class C.

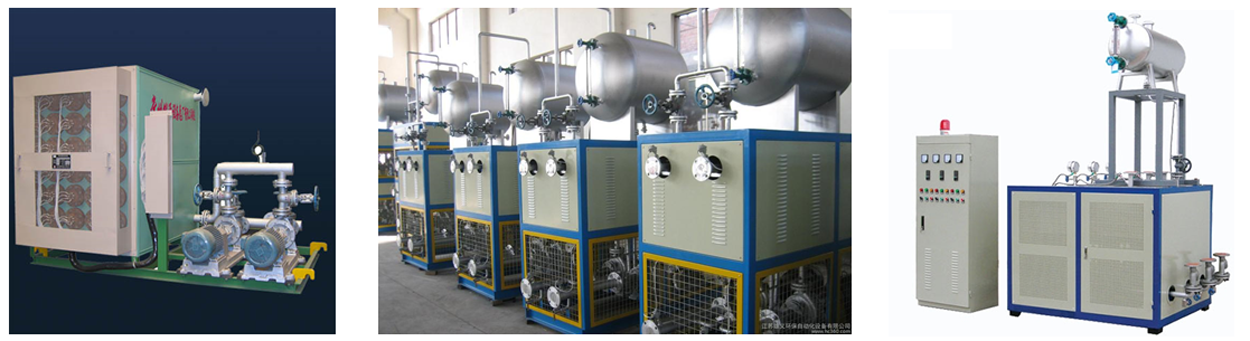

電加熱導熱油爐非防爆型的圖例，
Legend of non explosion proof electric heating and heat transfer oil furnace,
電加熱導熱油爐非防爆型與非防爆型的，在化工園區應買防爆型的，防爆等級：dIIBT4,防護等級IP55
For non explosion proof and non explosion proof electric heating oil furnaces, explosion-proof types should be purchased in chemical industrial parks, with explosion-proof rating of dIIBT4 and protection level of IP55
電加熱導熱油爐工作原理： Working principle of electric heating thermal oil furnace:
電加熱導熱油爐的熱量是由浸入導熱油的電加熱元件產生和傳輸的，以導熱油為介質，利用循環泵，強制導熱油進行液相循環，將熱量傳遞給用一個或多種用熱設備，經用熱設備卸載后，重新通過循環泵，回到加熱器，再吸收熱量，傳遞給用熱設備，如此周而復始，實現熱量的連續傳遞，使被加熱物體溫度升高，達到加熱的工藝要求。
The heat of the electric heating oil furnace is generated and transmitted by the electric heating element immersed in the heat transfer oil. Using the heat transfer oil as the medium, a circulation pump is used to force the heat transfer oil to circulate in the liquid phase, transferring the heat to one or more heating devices. After being unloaded by the heating devices, the heat is returned to the heater through the circulation pump, absorbed again, and transferred to the heating devices. This process repeats to achieve continuous heat transfer, raising the temperature of the heated object and meeting the heating process requirements.

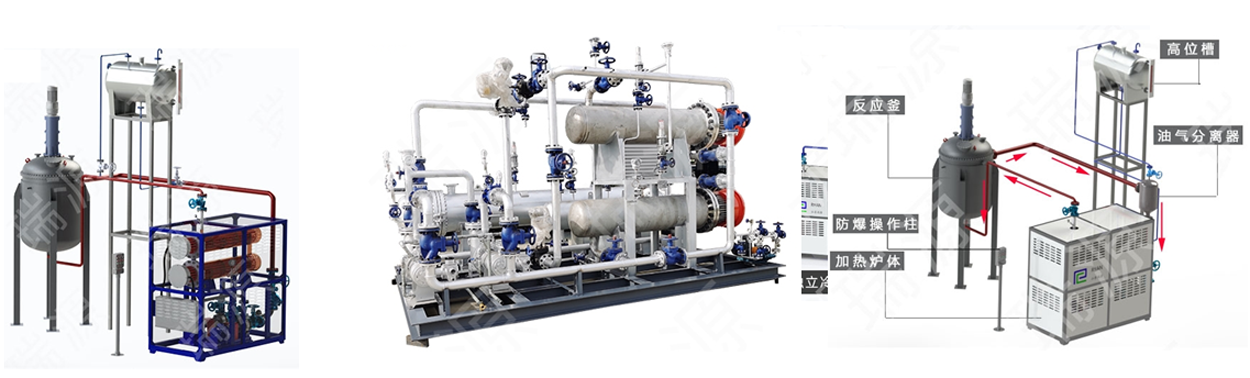

電加熱導熱油爐是由防爆電加熱器、有機熱載體爐、現場防爆操作箱、熱油泵、膨脹槽、儲油槽等在工廠組裝成一個整體式的電加熱爐，用戶只僅需接入電源、介質的進出口管道及一些電氣接口即可使用，該產品廣泛應用于石油、化工、制藥、紡織印染、輕工、建材等工業領域。
The electric heating thermal oil furnace is an integrated electric heating furnace assembled in a factory from explosion-proof electric heaters, organic heat carrier furnaces, on-site explosion-proof operation boxes, hot oil pumps, expansion tanks, oil storage tanks, etc. Users only need to connect the power supply, medium inlet and outlet pipelines, and some electrical interfaces to use it. This product is widely used in industrial fields such as petroleum, chemical, pharmaceutical, textile printing and dyeing, light industry, and building materials.
一、 電加熱導熱油爐技術參數
參數/數據/型號 | QXD24 | QDX36 | QXD48 | QXD72 | QXD120 | QXD150 | QXD180 | QXD240 | QXD360 | QXD500 | QXD600 | QXD720 | |
額定熱功率kW | 24 | 36 | 48 | 72 | 120 | 150 | 180 | 240 | 360 | 500 | 600 | 720 | |
熱效率% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | |
設計壓力MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.68 | 0.68 | 0.68 | 0.7 | 0.7 | 1.0 | 1.0 | 1.0 | |
介質最高溫度℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
爐內介質容量m3 | 0.02 | 0.023 | 0.03 | 0.05 | 0.08 | 0.11 | 0.12 | 0.15 | 0.25 | 0.4 | 0.5 | 0.6 | |
介質循環量m3 /h | 8 | 8 | 8 | 12.5 | 12.5 | 32 | 32 | 40 | 40 | 40 | 50 | 50 | |
配管連接口徑DN | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 80 | 80 | 100 | 100 | |
系統裝機容量kW | 27 | 40 | 55 | 80 | 130 | 180 | 200 | 260 | 400 | 550 | 650 | 780 | |
外形尺寸㎜ | 長 | 1800 | 1800 | 1800 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 | |||
寬 | 600 | 850 | 600 | 850 | 1350 | 1350 | 1700 | 1800 | 2200 | ||||
高 | 1850 | 1600 | 1600 | 1850 | 1650 | 2200 | 1650 | 1650 | 2000 | ||||
設備總重㎏ | 540 | 630 | 660 | 780 | 1085 | 1240 | 1300 | 1400 | 2300 | ||||
